Wearables & physical assets
Interface architecture / October 3 updateNIRVANA

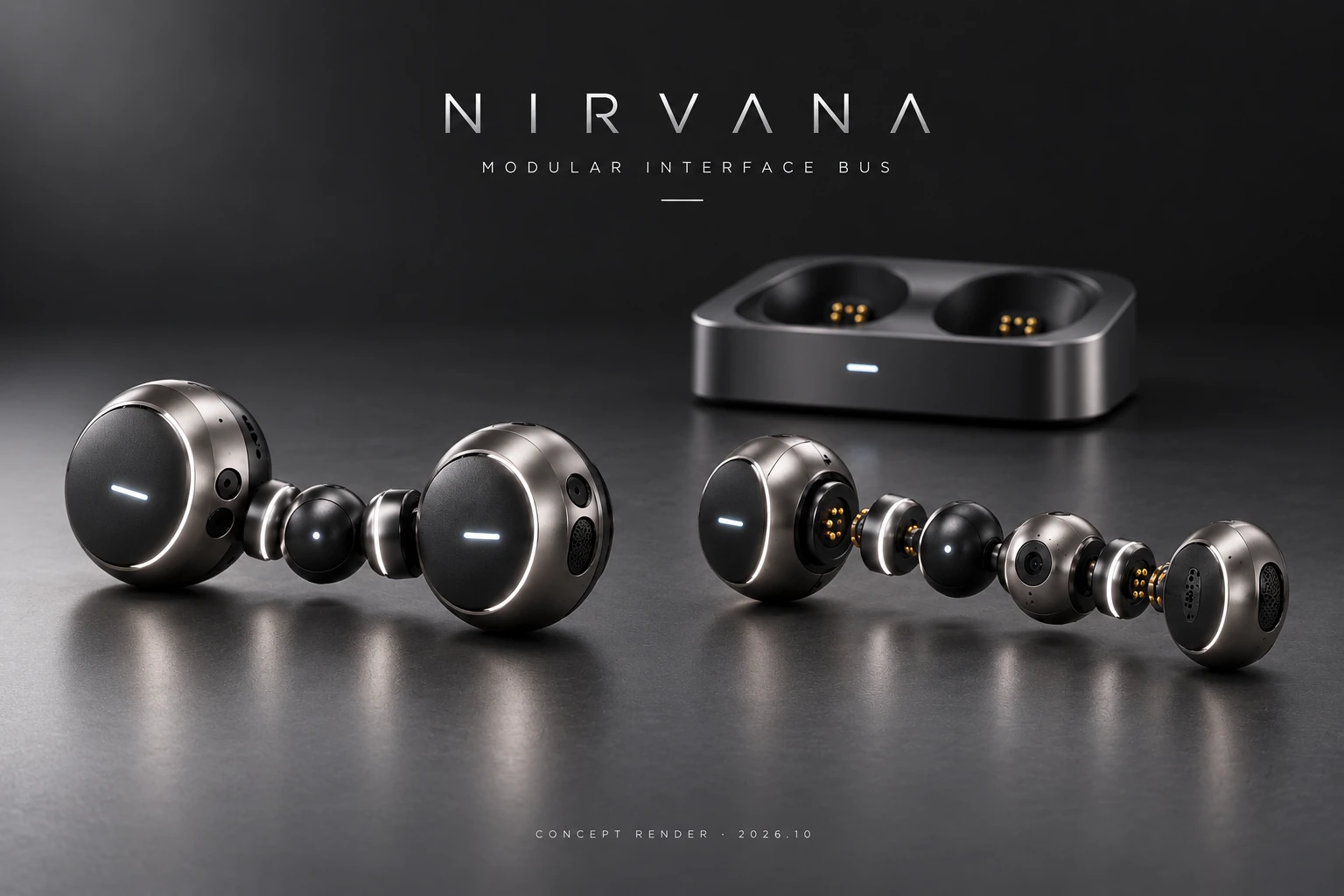

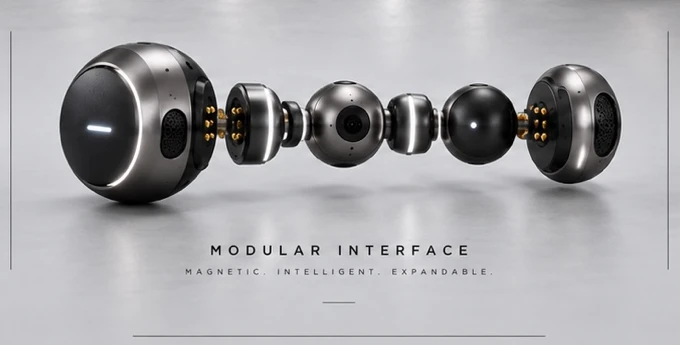

Modular interface bus
The interface bus connecting compatible audio nodes, haptics, perception displays and service interfaces.
FIELD DOSSIER / TQ-03
Interface / wearable node
- Target mass
- 12–24 g per node
- Target size
- 30 × 16 × 12 mm
- Fit / configuration
- Modular stud / bead carrier

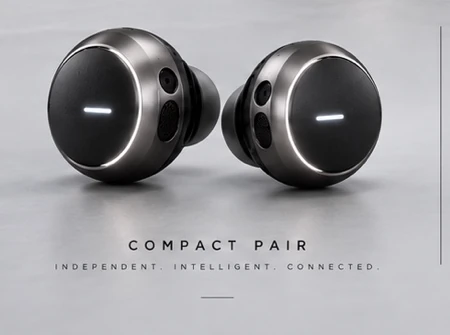

One interface node; paired nodes and the separate charger are additional.
Wear location, radio and coupling remain open design choices.
CURRENT STUDIES & ORIGINAL REFERENCES

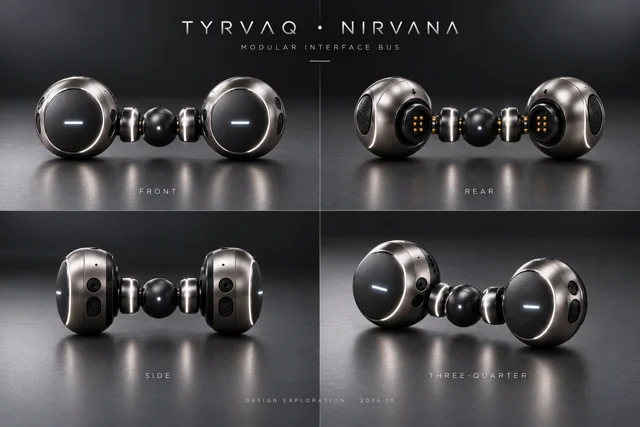

Every angle. Every detail.
Continuity across nodes
NIRVANA carries authenticated interface events among CORE, ZENTRA, ear nodes and compatible ASSETs. Paired nodes, modular studs or beads, wear locations, coupling and radio details remain design choices. Its separate charger and battery isolation need their own budgets.
Presence mode
The October 3 integration note proposes Presence as an experience mode within NIRVANA. It coordinates SOL visuals, synthesized directional audio and existing haptic cues, with deliberate viewpoint selection and urgent warnings taking priority over optional media.
Transport does not grant authority
A NIRVANA message cannot itself authorize thrust, valve opening, capture release or a life-support change. SPARTA and the destination controller still check permission and physical limits. Essential protection and local warnings require an independent path when NIRVANA is unavailable.
FROM COMPONENT TO CONFIGURATION
See NIRVANA in context.

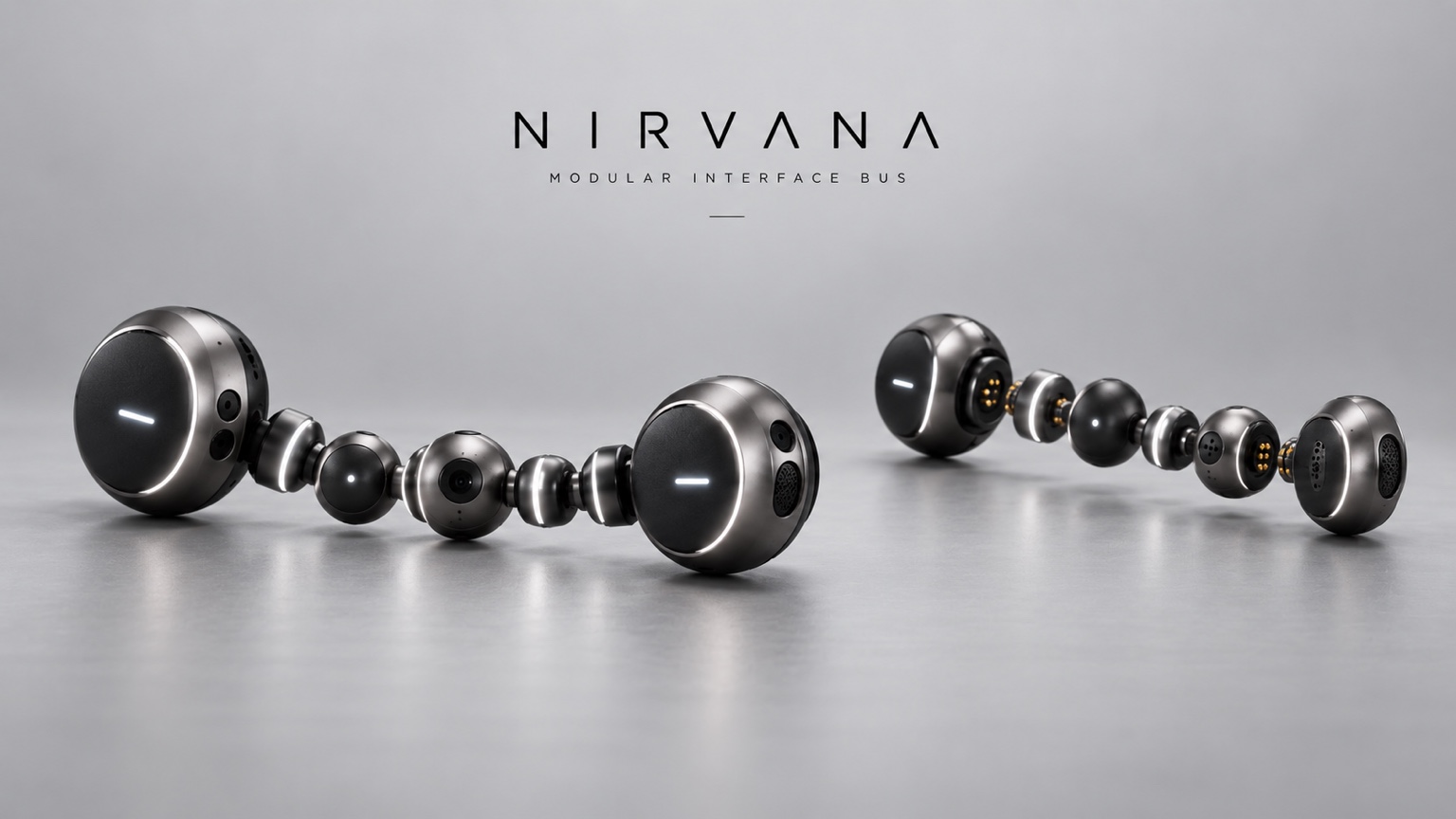

Explore the original NIRVANA 3D study
This earlier 3D reference may differ from the current renders. It is a visual study with no manufacturing or performance specification.
